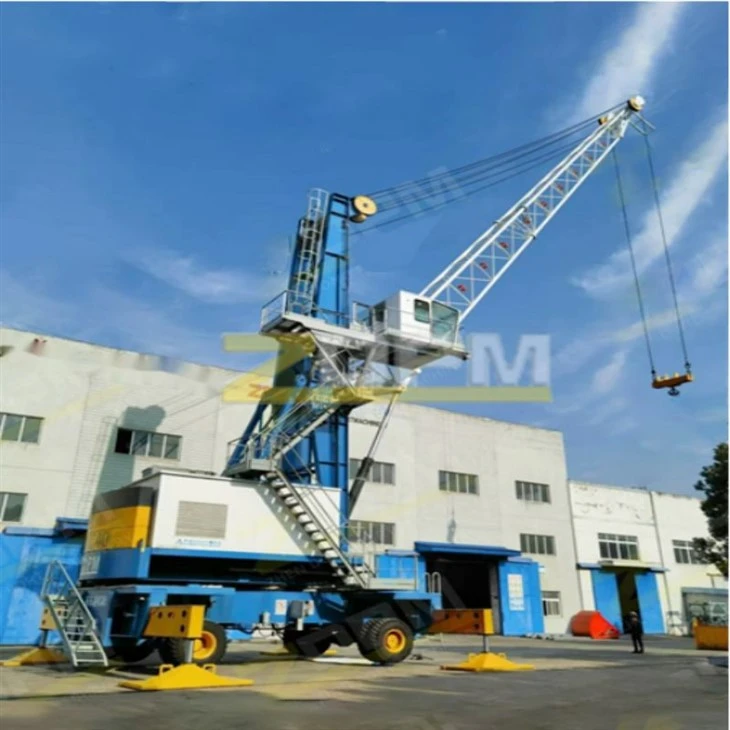

Fully Hydraulic Tyre Crane

Fully Hydraulic Tyre Cranes utilize hydraulic transmission for lifting, boom adjustment, slewing, and traveling functions. Their pilot-controlled proportional system enables coordinated lifting, boom adjustment, and slewing operations. As mobile lifting equipment that integrates traveling and hoisting capabilities, these cranes employ a fully hydraulic drive system, delivering high mobility and operational efficiency. They are widely used in construction, port operations, logistics, and related fields, demonstrating exceptional versatility and productivity.

Chassis Part:
Tire walking mechanism: Adopts a multi-axis tire chassis, providing road driving capability, a small turning radius, and the ability to transfer sites without towing.
Drive system: Fully hydraulic drive, including a hydraulic motor, gearbox, and drive axle, enabling stepless speed change.

On-board Part (Lifting Mechanism):
Hydraulic system: Composed of a hydraulic pump, control valve, and actuator (hydraulic cylinder, motor), it facilitates lifting, boom adjustment, rotation, and other actions.
Lifting arm: Typically a telescopic box structure; some models are equipped with a truss auxiliary arm to expand the working range.
Turntable: Supports the lifting arm and control room, allowing 360° full rotation.
Weight: Features a detachable design to balance the overturning moment during lifting.

Full Hydraulic Control:
All movements (lifting, boom adjustment, rotation, support leg extension and retraction) are completed by the hydraulic system, ensuring stable and precise operation.
Uses a load-sensitive pump or electro-hydraulic proportional valve to achieve intelligent matching of flow and pressure, improving energy efficiency.

Strong Mobility:
The tire design is suitable for short-distance transfers, with road speeds reaching 30–80 km/h.
Some models feature all-wheel steering or crab walking mode, making them suitable for narrow sites.

Safety Devices:
Force limiter, overload protection, level indicator, and support leg pressure sensor ensure operational safety.
Equipped with an emergency hydraulic system to prevent loss of control in case of sudden failure.

• Lifting capacity: Ranges from 10 to 300 tons, with small and medium-sized models (25–50 tons) being the most widely used.
• Working radius: The main arm can extend up to 30–60 meters, with the auxiliary arm further expanding the range.
• Power configuration: Diesel engine (China VI/EU VI emission standards) or hybrid (electric + diesel).
• Leg type: H-type or X-type hydraulic legs to improve operational stability.

Can be customized according to customer requirements

• Construction: Lifting steel structures, prefabricated components, and equipment installation.
• Emergency rescue: Quickly arriving at the scene to lift obstacles.
• Port logistics: Container handling and cargo transfer.
• Industrial maintenance: Equipment maintenance in factories and heavy parts handling.
