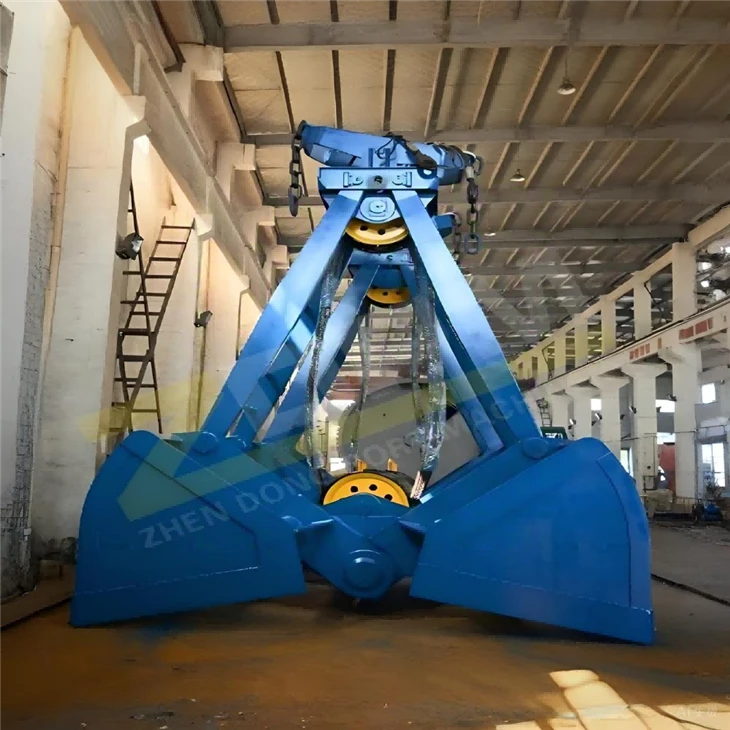

Four Cable Double Flap Mechanical Grab

The four-cable double-flap mechanical grab is a heavy-duty grabbing equipment widely used for bulk cargo handling (such as coal, ore, grain, etc.). Its core features include a four-wire rope (four-slip) drive and a double-flap (jaw plate) structure, which ensure high efficiency, durability, and adaptability.

Double-Flap: Composed of two symmetrical arc-shaped bucket plates, which form a material storage space when closed. The material is typically high-strength, wear-resistant steel (such as NM400), and tooth plates can be added to enhance gripping force under certain working conditions.

Four-Wire Rope System:

• Support ropes (2): Suspend the main body of the grab and bear the weight of the grab and the material.
• Closing ropes (2): Control the opening and closing of the bucket, enabling grabbing and unloading through synchronous winding and unwinding of the winch.
• Pulley group and hinge mechanism: Convert the tension of the wire ropes into the opening and closing action of the jaw plates, ensuring synchronous movement of the double flaps.
• Balance beam: Connects the support ropes and the grab to ensure uniform force distribution and prevent unbalanced loads.

Open state: The closing ropes are relaxed, and the bucket opens due to self-weight or external force (e.g., material resistance).
Material grabbing: The closing ropes are tightened, pulling up the pulley group to close the double flaps, cutting into the material and completing the grab.
Lifting: The support ropes and closing ropes lift synchronously, keeping the grab closed.
Unloading: Upon reaching the target position, the closing ropes are relaxed, and the bucket opens for unloading (either by collision with an unloading frame or through automatic control).

High efficiency: The double-flap design is ideal for loose materials, offering a high grab-to-weight ratio (grasping weight/self-weight) and short cycle times.
Strong adaptability: The bucket shape (e.g., wide mouth, narrow mouth, with teeth) can be adjusted to suit different materials (e.g., coal, ore, grain).
Durability: Key components (e.g., pulleys, pins) are made of hardened alloy steel for wear and impact resistance.
Four-rope stability: Compared to a two-rope grab, the four-rope system distributes the load, reducing wear on individual ropes and extending their lifespan.

• Port terminals: Loading and unloading bulk cargo ships, railway cars, etc.
• Mine stockyards: Ore and coal stacking and handling operations.
• Power plants/steel mills: Raw material transportation systems (e.g., limestone, iron powder).
• Grain storage: Handling of soybeans, wheat, and other granular materials (requires dustproof design).

Material characteristics: Density, particle size, flowability (e.g., anti-adhesion design for viscous materials).
Volume and self-weight: Common volumes range from 5 m³ to 50 m³; the grab-to-weight ratio affects energy efficiency.
Drive mode: Compatible with various cranes (e.g., gantry cranes, bridge cranes), requiring matching winch speed and pulling force.
Special requirements: Explosion-proof (for flammable environments), corrosion-resistant (for salt spray environments), automatic control (for remote operation).
