Product Description

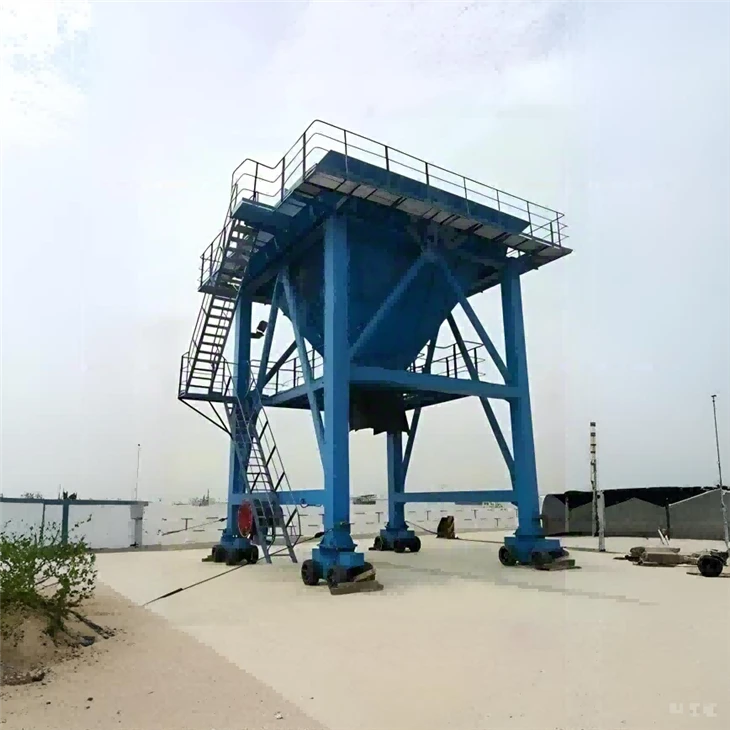

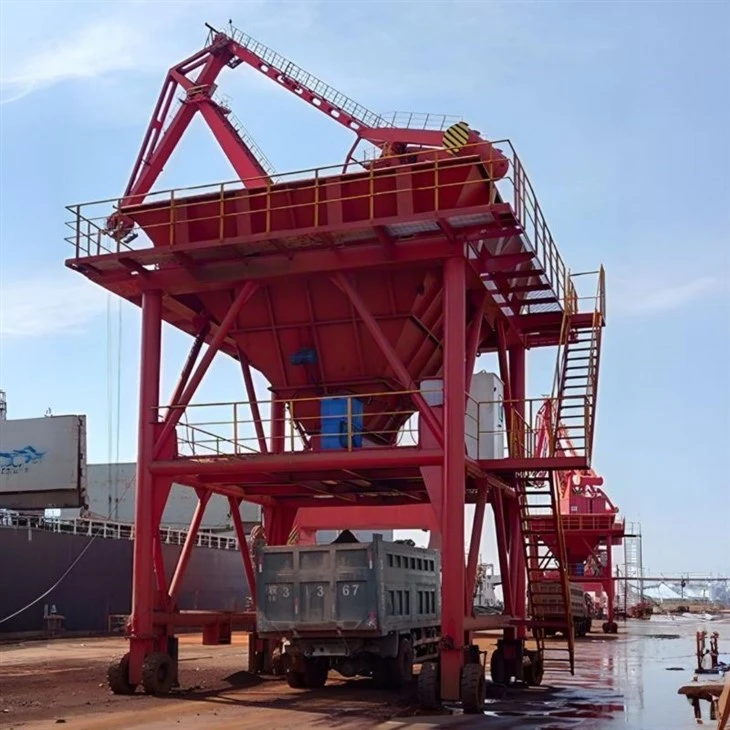

The mobile port hopper is a flexible material conveying equipment designed for the rapid loading and unloading of bulk goods (such as grain, ore, coal, fertilizer, etc.). Its core advantage lies in mobility, making it suitable for ports, farms, construction sites, and other scenes that need to change the operation site frequently.

Basic structure and composition of Mobile Port Hopper

Leakage body:

Conical or square conical structure, with a wide mouth at the top to receive materials and an adjustable outlet (such as gate or slide) at the bottom.

Materials are mostly wear-resistant steel plate, stainless steel or aluminum alloy (lightweight requirements).

Mobile support system:

Wheeled chassis: a brake-equipped tire or wheel that can be pushed by hand or towed by a vehicle.

Trailer design: connected to a truck or forklift to achieve rapid transfer (e.g. port container bulk unloading).

Foldable/telescopic structure: Some models can be contracted to reduce the volume of transportation.

Auxiliary Components:

Vibration motor: Prevents material blockage (for wet or easily clumping materials).

Dust removal system: Reduces dust dispersion (e.g., during grain or cement loading and unloading).

Weighing module: Integrated electronic scale for real-time monitoring of loading and unloading.

Core Features of the Mobile Port Hopper

Flexible deployment

No fixed installation required; can be moved to trucks, cargo ships, warehouses, or other loading/unloading points as needed.

Efficient operation

Directly connects to conveyor belts, silos, or transportation tools, reducing manual handling.

Multi-functional adaptation

The height and angle of the discharge port can be adjusted to accommodate different vehicles (e.g., truck compartments, containers).

Typical Application Scenarios of the Mobile Port Hopper

Ports and Logistics:
When unloading a bulk carrier, the hopper is moved to the hatch, allowing materials to fall through the hopper onto a belt conveyor or truck below.

Agriculture and Food Storage:
Mobile grain bins transfer harvested grain from the harvester to transport vehicles or facilitate loading/unloading into granaries.

Construction and Mining:
In temporary sand and gravel yards, the hopper works with loaders to supply materials quickly to mixers.

Emergency Relief:
Enables rapid setup of temporary material distribution systems (e.g., for coal or relief food loading/unloading).

Key parameters for selection

Parameter	Explain
Capacity	Single load capacity (e.g., 1-20 tons) is selected according to the operational efficiency requirements.
Mobile mode	Manual pull and push, mechanical traction (such as hook design), self-drive (with small engine).
Material control	Manual gate, electric/hydraulic control (remote operation).
Applicable materials	Particle size, flowability (for example, dustproof for powder, anti-clogging for block material).
Environmental requirements	Waterproof, explosion-proof (chemical scene), low temperature resistance (northern winter).

Product Superiority

The mobile port hopper is highly adaptable to docks and can handle a variety of materials. It utilizes ultrasonic micro-mist dust suppression technology to meet environmental requirements. It can unload materials onto trucks, belt conveyors, and more.

Bucket capacity

20-150m³
